Admin UI sometimes breaks
- michal.rames@gmail.com
- Topic Author
- Offline
- Junior Member
-
8 years 6 months ago - 8 years 6 months ago #61899
by michal.rames@gmail.com
Admin UI sometimes breaks was created by michal.rames@gmail.com

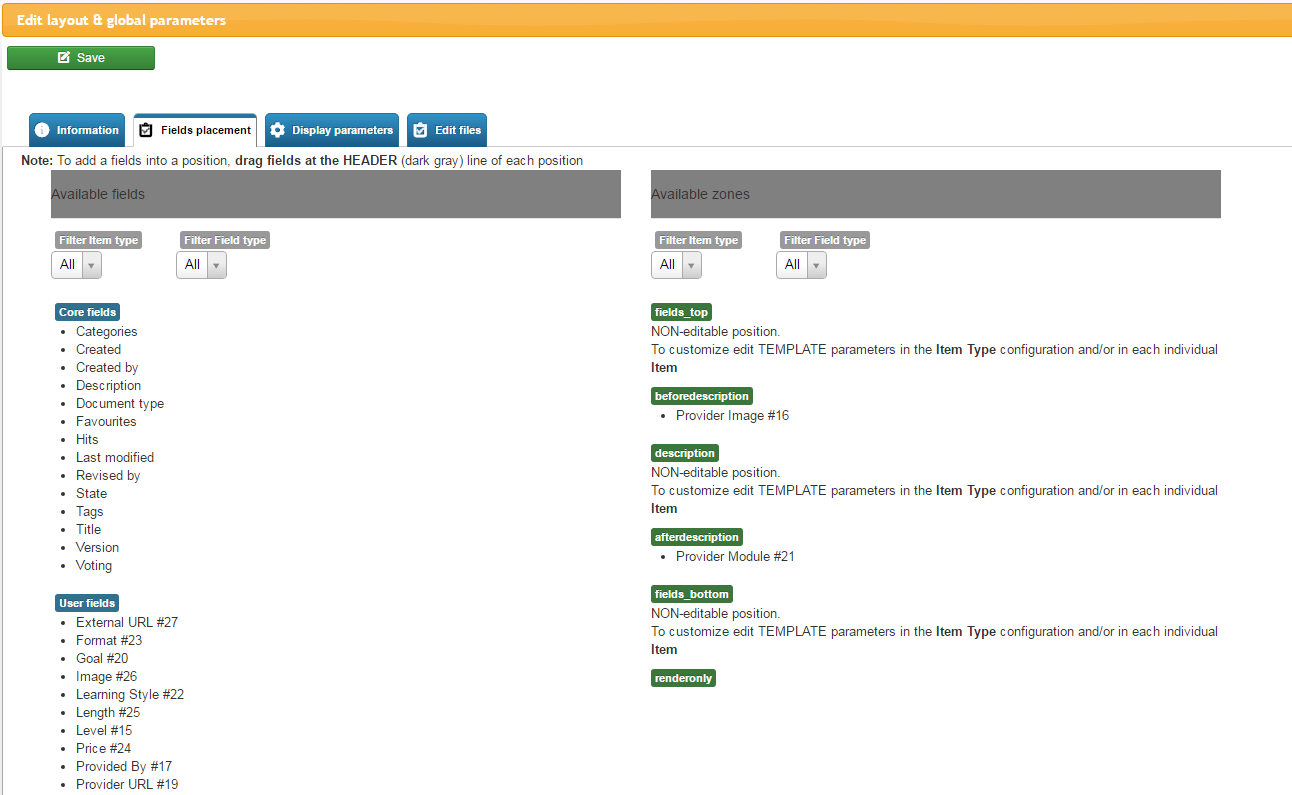

I am sometimes getting unformatted FlexiContent UI components - see attached screenshot with example of template layout editing.
How do I troubleshoot this?
Joomla 3.5.1 with FC 3.0.14-rc2a
How do I troubleshoot this?
Joomla 3.5.1 with FC 3.0.14-rc2a
Last edit: 8 years 6 months ago by michal.rames@gmail.com.
Please Log in or Create an account to join the conversation.
- michal.rames@gmail.com
- Topic Author
- Offline
- Junior Member
-
8 years 5 months ago - 8 years 5 months ago #62261
by michal.rames@gmail.com
Replied by michal.rames@gmail.com on topic Admin UI sometimes breaks
Hi,

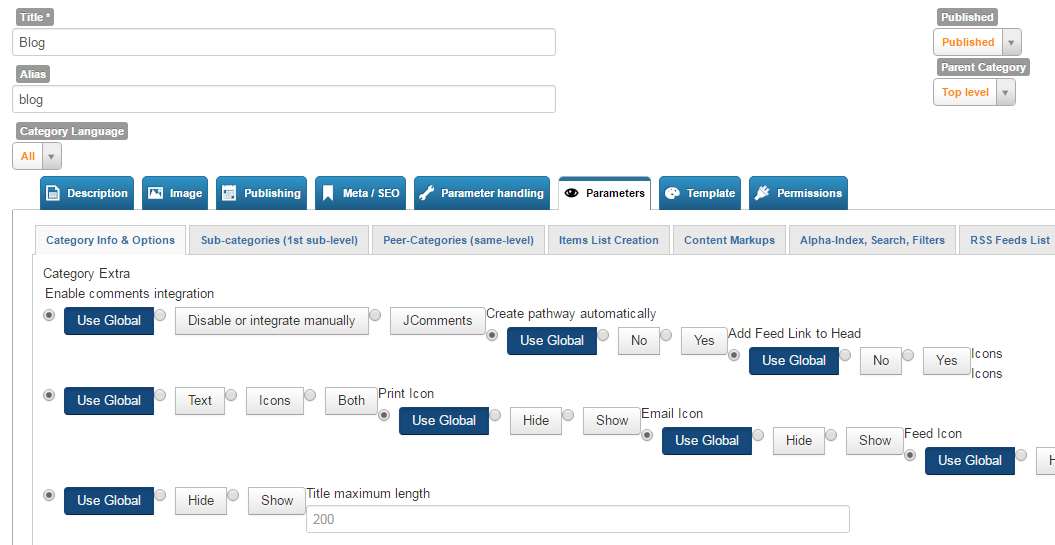

just noticed it appears in the category configuration as well and I can now replicate the issue on items admin dashboard:
1) change ownership (recursively) on htdocs/administrator/components/com_flexicontent
2) click "items" in admin dashboard - rendered correctly
3) click "items" in admin dashboard again - rendering is broken
4) repeat step 1
5) repeat step 2
Do you have any suggestions how to troubleshoot further please?
just noticed it appears in the category configuration as well and I can now replicate the issue on items admin dashboard:
1) change ownership (recursively) on htdocs/administrator/components/com_flexicontent
2) click "items" in admin dashboard - rendered correctly
3) click "items" in admin dashboard again - rendering is broken
4) repeat step 1
5) repeat step 2
Do you have any suggestions how to troubleshoot further please?
Last edit: 8 years 5 months ago by michal.rames@gmail.com. Reason: Additional details
Please Log in or Create an account to join the conversation.
- michal.rames@gmail.com
- Topic Author
- Offline
- Junior Member
-
8 years 5 months ago - 8 years 5 months ago #62343
by michal.rames@gmail.com
Replied by michal.rames@gmail.com on topic Admin UI sometimes breaks
Hi,
No error appears in the console and no PHP notice in the HTML.
When I tried updating to 3.0.x branch, it did not change the behavior.

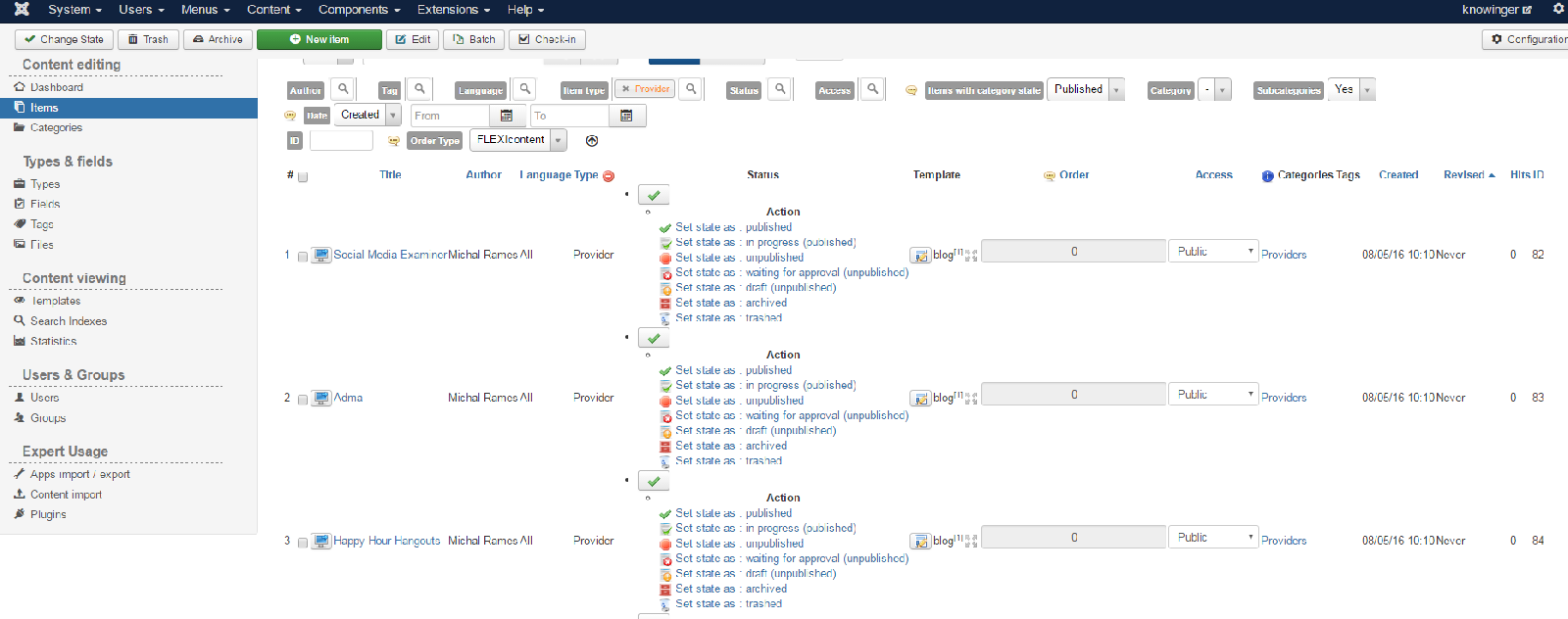

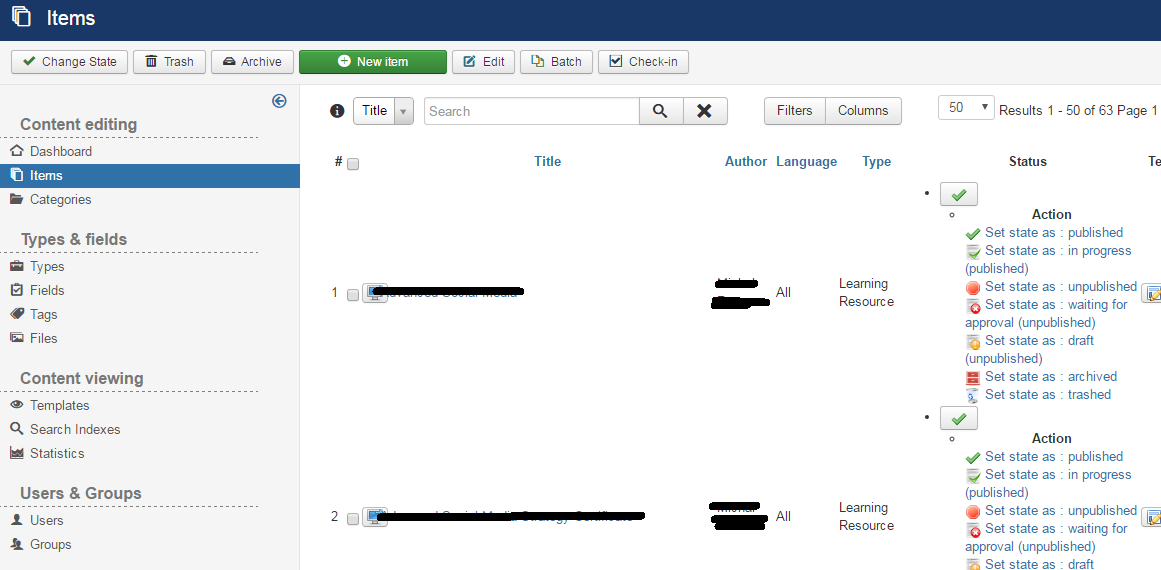

I can now replicate the problem also in items admin dashboard by clicking e.g. "Revised" column (to sort by revised. See attached screenshot of the "broken" admin layouts.
I can see that a whole lot of flexi_xxx.css and flexi-libxxxx.js is not loaded when the layout breaks. The HTML source of the healthy page looks like this:
while the HTML source of the broken page looks like this (notice the empty gap where there are normally script references?):
If you would be able to provide suggestions for next troubleshooting steps that would be awesome.
Thank you
No error appears in the console and no PHP notice in the HTML.
When I tried updating to 3.0.x branch, it did not change the behavior.
I can now replicate the problem also in items admin dashboard by clicking e.g. "Revised" column (to sort by revised. See attached screenshot of the "broken" admin layouts.
I can see that a whole lot of flexi_xxx.css and flexi-libxxxx.js is not loaded when the layout breaks. The HTML source of the healthy page looks like this:
Code:
<link href="/administrator/templates/isis/favicon.ico" rel="shortcut icon" type="image/vnd.microsoft.icon"/>
<link rel="stylesheet" href="/components/com_flexicontent/librairies/jquery/css/ui-lightness/jquery-ui-1.9.2.css" type="text/css"/>
<link rel="stylesheet" href="/components/com_flexicontent/librairies/select2/select2.css?3.5.4" type="text/css"/>
<link rel="stylesheet" href="/administrator/components/com_flexicontent/assets/css/flexicontentbackend.css?1f790a6095394b0d4fde4c95942d7d68" type="text/css"/>
<link rel="stylesheet" href="/administrator/components/com_flexicontent/assets/css/j3x.css?1f790a6095394b0d4fde4c95942d7d68" type="text/css"/>
<link rel="stylesheet" href="/administrator/templates/isis/css/template.css?ae04fe1e25499f07f859a9ddbe98c2f0" type="text/css"/>
<style type="text/css">.menu-akeeba-16{background:url(http://52.62.36.196/media/com_akeeba/icons/akeeba-16.png) no-repeat}.menu-flexicontent{background:url(components/com_flexicontent/assets/images/flexicontent.png) no-repeat}</style>
<script src="/media/system/js/core.js" type="text/javascript"></script>
while the HTML source of the broken page looks like this (notice the empty gap where there are normally script references?):
Code:
<link rel="stylesheet" href="/A.administrator,,_components,,_com_flexicontent,,_assets,,_css,,_flexicontentbackend.css,,q7354d0787c8f2b309d3f18c072ecf170+administrator,,_components,,_com_flexicontent,,_assets,,_css,,_j3x.css,,q7354d0787c8f2b309d3f18c072ecf170+components,,_com_flexicontent,,_librairies,,_jquery,,_css,,_ui-lightness,,_jquery-ui-1.9.2.css+components,,_com_flexicontent,,_librairies,,_select2,,_select2.css,,q3.5.4+components,,_com_flexicontent,,_assets,,_css,,_tabber.css,,q7354d0787c8f2b309d3f18c072ecf170+media,,_system,,_css,,_modal.css+administrator,,_templates,,_isis,,_css,,_template.css,,qcdf901f132ed2b0968e7ee239e8e94e5,Mcc.rFGPBj0XEG.css.pagespeed.cf.zdvDLpWd7f.css" type="text/css"/>
<style type="text/css">.mce-in{padding:5px 10px!important}div.pane-sliders ul.adminformlist li select{margin-bottom:0px}div.pane-sliders ul.adminformlist li fieldset{margin:0;padding:0}div.current ul.config-option-list li .fcsep_level3{left:232px!important}div.control-group div.control-label label.hasTooltip,div.current ul.config-option-list li label.hasTooltip{display:inline-block;padding:4px;margin:1px 6px 0px 1px;text-align:right;width:220px;font-weight:normal;font-size:12px;background-color:#f6f6f6;border-bottom:1px solid #e9e9e9;border-right:1px solid #e9e9e9;color:#666}div fieldset select{margin:0px}div.current ul.config-option-list li select{margin-bottom:0px;font-size:12px}div.current ul.config-option-list li fieldset{margin:0;padding:0}.tool-tip{}.tip-title{}.menu-akeeba-16{background:url(http://52.63.186.147/media/com_akeeba/icons/akeeba-16.png.pagespeed.ce.wP2TkGbDyB.png) no-repeat}.menu-flexicontent{background:url(components/com_flexicontent/assets/images/xflexicontent.png.pagespeed.ic.9eZcccbh4a.png) no-repeat}</style>
<script src="/media/system/js/core.js.pagespeed.jm.j38qmNNAsD.js" type="text/javascript"></script>
If you would be able to provide suggestions for next troubleshooting steps that would be awesome.
Thank you
Last edit: 8 years 5 months ago by michal.rames@gmail.com. Reason: added troubleshooting details
